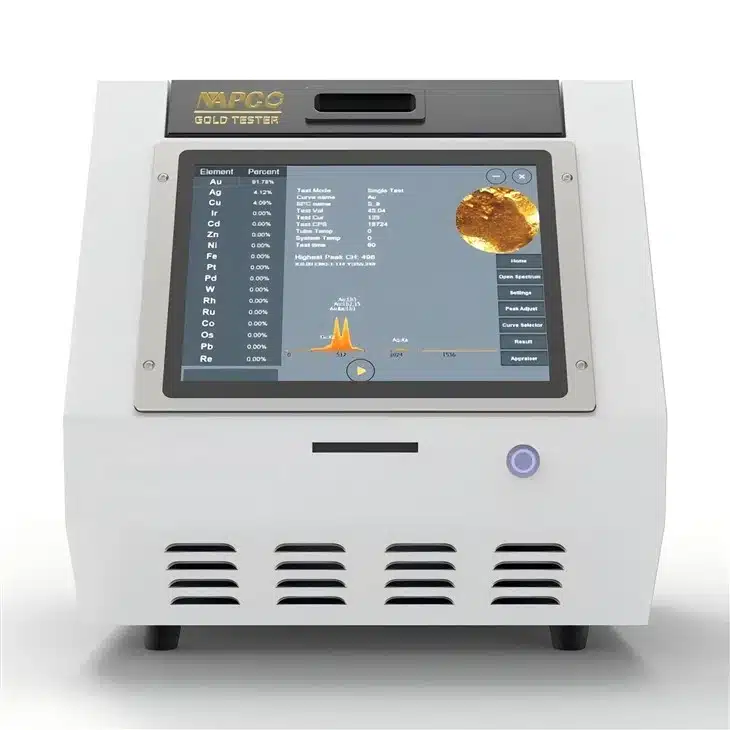

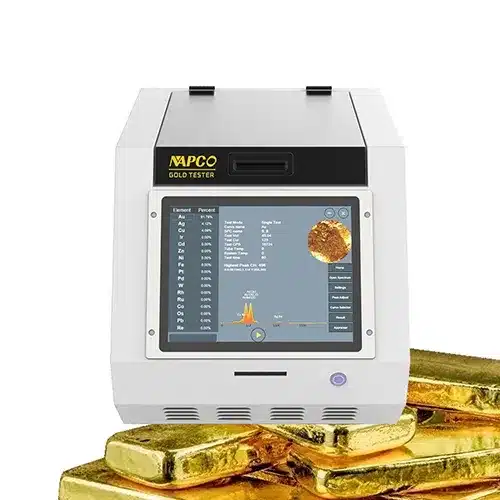

NAP 8200E XRF Gold Tester
The NAP-8200E is Napco’s flagship benchtop XRF analyzer, trusted by over 20,000 jewelry stores, banks, pawnshops, and refineries worldwide for fast, non-destructive, and ultra-accurate precious metal testing.
Why the NAP-8200E is the No.1 choice for professionals:
- Laboratory-grade accuracy: ≥ 99.99% precision for gold, silver, platinum, palladium and 20+ other elements
- Lightning-fast results: Complete analysis in just 30 seconds
- Non-destructive testing: Zero damage or material loss – perfect for high-value jewelry and bullion
- Detects every fraud type: Instantly identifies plating, filled gold, counterfeit bars, tungsten cores, and under-karated items that acid tests miss
- Long-term stability & reproducibility: Consistent results year after year with minimal calibration
- User-friendly software: One-click operation, automatic karat classification, and printable certified reports
- Advanced safety features: Fully enclosed chamber, radiation shielding, and multiple interlocks for operator protection
- Built to last: Robust industrial design with 24/7 technical support and worldwide service network
Ideal for:
- Jewelry retailers & manufacturers
- Pawnshops & cash-for-gold businesses
- Banks & financial institutions accepting precious metal collateral
- Precious metal refineries & assay offices
- Quality control and hallmarking centers
Technical Highlights
- High-resolution SDD detector
- Ceramic X-ray tube for extended lifespan
- Multi-element analysis (Au, Ag, Pt, Pd, Rh, Ru, Cu, Zn, Ni, Cd, etc.)
- Measurement range: 0.1% – 99.999%
- Large 15-inch touchscreen with intuitive interface
- Built-in printer & USB export for compliance records
Implementation Tips for Napco XRF Analyzers
Quick-Start Best Practices
- Place the analyzer on a stable, vibration-free surface (avoid counters near stamping machines or heavy foot traffic).
- Use the provided sample cups and protective films for loose scrap or irregular pieces to prevent contamination and ensure repeatable results.
- Perform daily energy calibration (takes <60 seconds) using the included standard reference block – this guarantees long-term 99.99% accuracy.
- Train all staff in under 2 hours: the touchscreen interface is designed for non-technical users (jewellers, cashiers, security officers).
- Connect to your network or Wi-Fi for automatic software updates and cloud backup of test reports.
Common Challenges & Proven Solutions
| Challenge | Solution with Napco XRF |
|---|---|
| Inconsistent results between branches | Centralized calibration standards + cloud-synced settings ensure identical results across all locations |
| Staff afraid of radiation | Fully enclosed chamber + triple safety interlocks – safer than a dental X-ray; no special license required in most countries |
| Testing coated or plated jewelry | Automatic “plating detection mode” instantly flags thickness and base metal beneath gold layer |
| Small or oddly shaped items | Included collimators (1 mm–10 mm spot size) + adjustable stage handle rings, earrings, chains, and nuggets effortlessly |
| Need legal/certified reports for loans | Built-in printer + PDF export with timestamp, serial number, and company logo – accepted by banks and insurers worldwide |
| High sample volume during peak hours | 30-second test cycle + batch mode allows 120+ tests per hour without fatigue |
